Double Cone Blender
Product Details
- Product : Double Cone Blender
- Categories : Pharma Process Machineries
- Available : from 100 Liters to 5000 Liters.
about Double Cone Blender

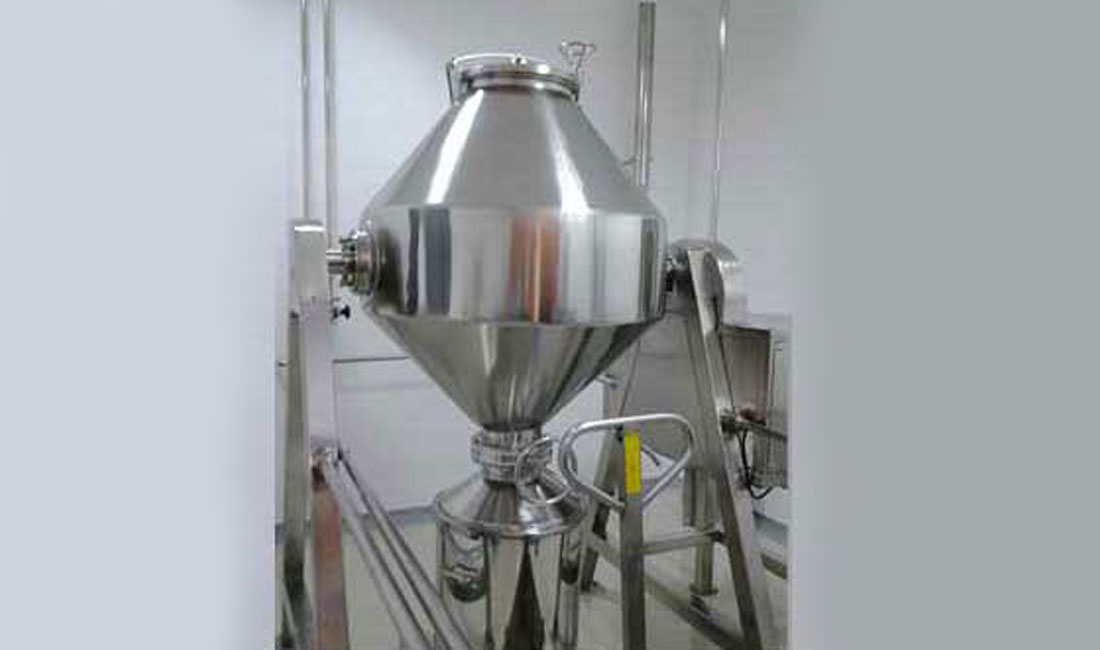

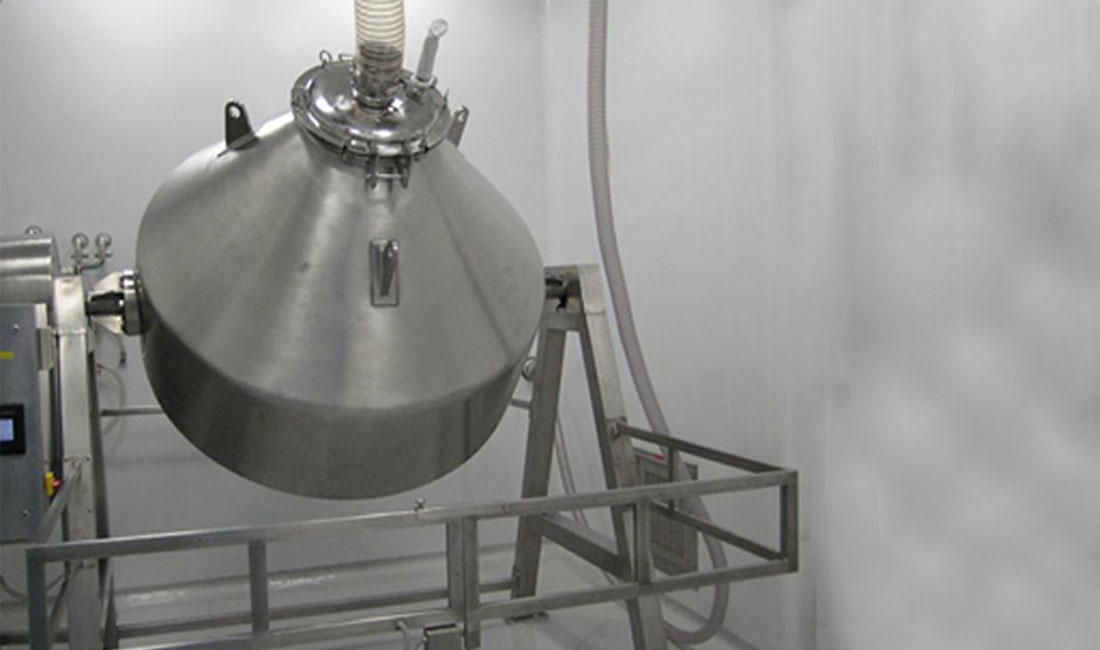

The double cone blender consist s of two cone shaped sections with 45º slopes. The cone sections are welded at their wide ends to a centre band. The blender is mounted between two trunnions that permits the unit to tumble end over end. In operation, material is loaded to a fill level of 50 to 60% of the blender’s capacity. The blender tumbles and the material in the vessel spreads out.
The transition area at the band between the cones prevents the material from sliding along the inner wall and instead causes the material to fold over itself. This provides gentle mixing with only very slight shear. The blender is ideal for powders of granules that degrade by attrition.
The smooth transition area in the vessel also simplifies cleaning because there are no areas to trap particles and cross-contaminate batches.
- Total cGMP finish construction.
- Homogenised blending of solid components.
- Advanced design with additional features for varying
speed, safety (flame-proof)etc.
- Ideal for various applications in solid mixing.
- Conical shape and elongated plane at both ends
enables uniform mixing and easy discharge.
- The cone is statically balanced which protects the gear
box and motor from any excessive load.
- Powder is loaded into the cone through a wide opening
and discharged through a butterfly valve.
- Contact parts are made of SS 304 or SS 316 .
- Flame proof electricals can be provided.
- Variable speed option available 70%~.
- Dust free bin charging system.
